Switcher

(24 simultaneous HD/SDI inputs and 10 outputs with the ability to take in up to four HDMI or Composite/ Component inputs.) Color correctors and proc amps on every input… Ability to upconvert your SD sources to HD. External Dashboard control system GUI runs on side PC for ease of use. 2 Full ME and 4 MiniMEs for a total of up to 16 Keyers utilizing 8 channel DVE + two chroma keyers. Support for live EDL.

Cameras

With 4 Fujinon - XT20SX4.7BRM 20x zoom HDTV Lenses and 1 Fujinon 18x zoom ENG Lens with 2X Extender… including zoom/focus controls. Remote camera control units in the truck. 3 Manfrotto - 509HD Video Head with 545GB Tripod Legs. Various Marshall, Black Magic, and Ikan Studio/ Field Monitors. Other lens configurations available pending separate price quote basis.

Wireless Camera Adpater

Transmitting over the unlicensed 5GHz band, Beam can attain distances up to 2500ft, perfect for ENG crews feeding full HD video back to an OB van!

Graphics

(multi-layered two channel input/output system) with integrated Datalink functionality to allow connectivity to external data sources such as: XML, ADODB databases, RSS feeds, Excel spreadsheets, text files, sports scoreboards, and other custom feeds. Includes ability to playback clips with embedded audio for promos or commercial breaks.

​

Graphics

(multi-layered single channel input/output system) with integrated Datalink functionality to allow connectivity to external data sources such as: XML, ADODB databases, RSS feeds, Excel spreadsheets, text files, sports scoreboards, and other custom feeds. Includes ability to playback clips with embedded audio for promos or commercial breaks. Runs on an ASUS Thunderbolt laptop and AJA io XT. Powerful native connectivity to our Ross switcher and dashboard via the Rosstalk protocol for remote control.

Audio

Live performance and studio recording digital console with up to 40 simultaneous input channels with 32 award-winning MIDAS microphone pre-amplifiers, 25 time-aligned and phase-coherent mix buses, AES50 networking allows up to 96 inputs and 96 outputs, Open architecture allows for future 96 kHz operation, 192 kHz ADC and DAC converters for outstanding audio performance, Industry-leading design by Bentley* Motors Designer, 40 bit floating point digital signal processing, 8 DCA and 6 mute groups, 8 stereo signal processing effects engines, and 25 MIDAS PRO motorized 100 mm faders!

​

Video Server

With two dedicated playout channels and playlist functionality. The server is controllable via Ross Dashboard client on our network. Enabled for switcher control via AMP protocol (Cue and Play commands.) Ideal for playout of commercial video spots, looping backgrounds, replay wipes, and more!

Replay System

Get a second look with our 4 in, 2 out slow motion replay system. You can use this box in the traditional replay workflow or even for simple quick record and playback functionality.

Intercom System

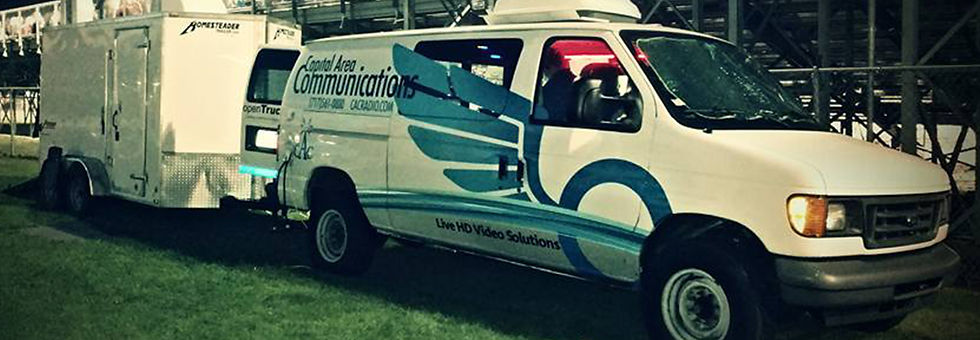

The Hermes HD Production Truck features a full analogue 4 channel ClearComm system with IFB. We also have wireless headsets that can be placed on any channel!

Capturing Capabilities

With routable auxiliaries outputs from our switcher we are able to take 5 simultaneous recordings of any combination for program redundancy, iso records on camera sources, or independent clean-feeds.

Display Board

Output your video feeds to our large 16x9 format screen. Great for music shows or live events with audiences!

Internet Video Streaming

Video encoding is performed using the latest compression technology offering superior quality at very low bit rates.

IP streaming is supported with a rich set of video networking protocols including UDP, and RTMP or HTTP Live Streaming (HLS), which allows connections to popular CDN’s for web steaming applications, internal monitoring or streaming to set- top boxes and mobile devices.on to grab your audience's attention...
